Break
The Break tool options palette.

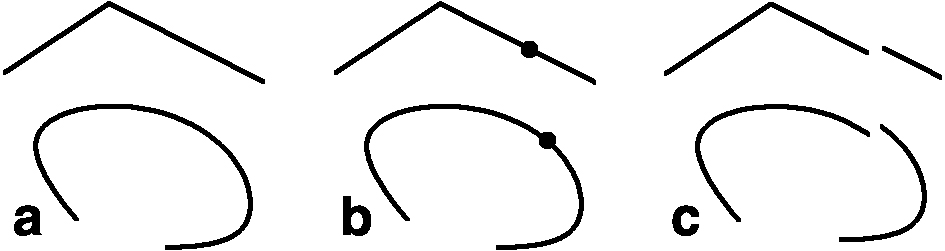

Break: (a) Original lines.
(b) Click points and (c) results (after moving some parts).
This tool breaks an open or closed vector line or spline shape at the click point. To apply it, with the tool active click where you want to break. The operation is executed immediately. See example.
|
If Opening is checked in the options palette, a gap is created at the click position. The size of that opening is determined either By Length or By Offset to the Left and/or Right. |
New in v. 3.0 |
